Tedder OZ - 454

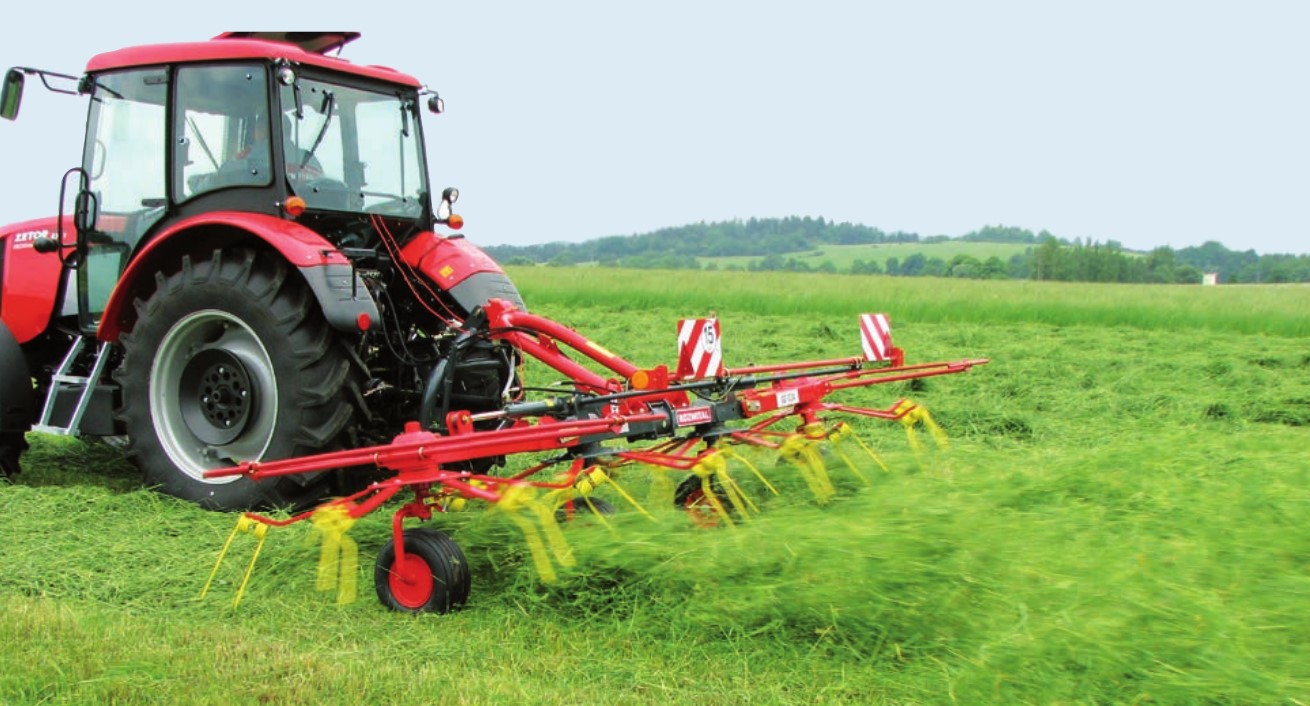

The fodder tedder OZ - 454 is a four rotor tedder with working width 4,5 m.

Their arms are hydraulically lifted to the vertical transport position and the amortization bars ensure their stability.

Technical data of the tedder
    OZ - 454
working width m 4,5
transport width m 2,64
number of the rotors pcs. 4
number of arms on the rotor pcs. 6
number of the fingers on the arm pcs. 1
diameter of the rotor m 1,36
outlet shaft speed rpm 540
size of the rotor tyres 16x6,5 - 8
maximum working width m 4,5
area capacity ha / hour 5,2
minimum drive power of the tractor kW 30
cardan shaft type 21101 K33
weight kg 555
